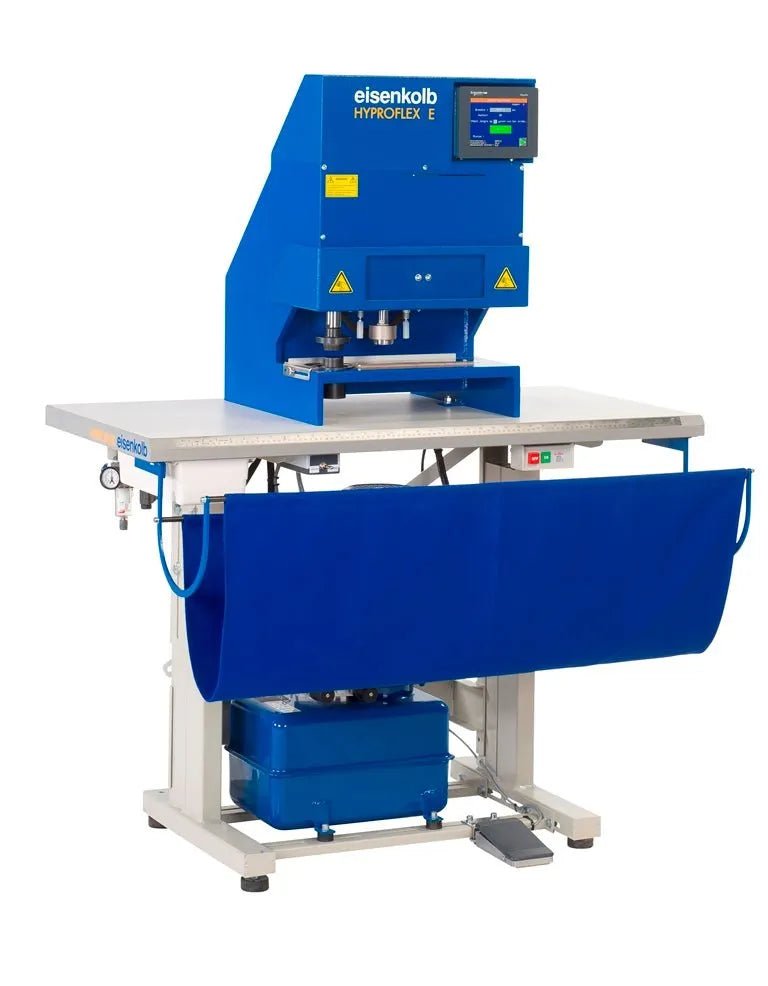

Eisenkolb Hyproflex: High-Precision Hydraulic Punching and Eyelet Pressing Machine

Only 2 left
Regular price Dhs. 0.00 inc. VAT

The Eisenkolb Hyproflex is an advanced hydraulic machine designed to streamline the curtain manufacturing process by simultaneously punching holes and pressing eyelets. Engineered for efficiency and precision, this machine is ideal for window covering manufacturers looking to enhance their production capabilities.

Key Features:

  1. Double Hydraulic Cylinders: The Hyproflex utilizes double hydraulic cylinders to simultaneously punch holes and press curtain rings into place, ensuring a secure and precise fit every time.

  2. Adjustable Ring Distance: Easily adjust the distance between rings using the hand wheel, allowing for customization to meet specific design requirements.

  3. Hydraulic Foot Pedals: The hydraulic foot pedals secure the fabric in place, making it easy to position the material accurately for each punch and press operation.

  4. Two-Hand Safety Controls: The machine features extremely safe two-hand controls to start the punching and pressing process, ensuring operator safety during use.

  5. Quick Change System: A quick change system for tools allows for rapid switching between different sizes, with the standard equipment set including a 40 mm size.

  6. Ring Specifications:

    • Ring Distance: 80 – 230 mm
    • Head Setting: 10 – 85 mm
  7. Optional Features:

    • Ring Calculation Module: Automatically calculates and sets the ring distance for consistent placement.
    • Eyelet Calculation Program: Helps position and hide seams for a clean, professional finish.
  8. High Production Capacity: The Hyproflex can process up to 150 rings per hour*, significantly boosting productivity, although actual capacity depends on the operator's efficiency.

Technical Specifications:

  • Dimensions: 110 x 75 cm
  • Electric: 220 V, 1 phase, 1100 W, 16 A
  • Air: 6 bar; 0.1 L per cycle

The Eisenkolb Hyproflex is a powerful and versatile machine that enhances the efficiency and quality of curtain production. Its advanced features and user-friendly design make it an indispensable tool for professional window covering manufacturers.
