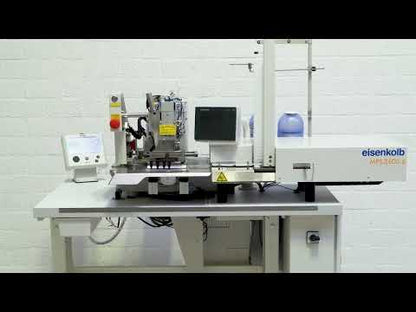

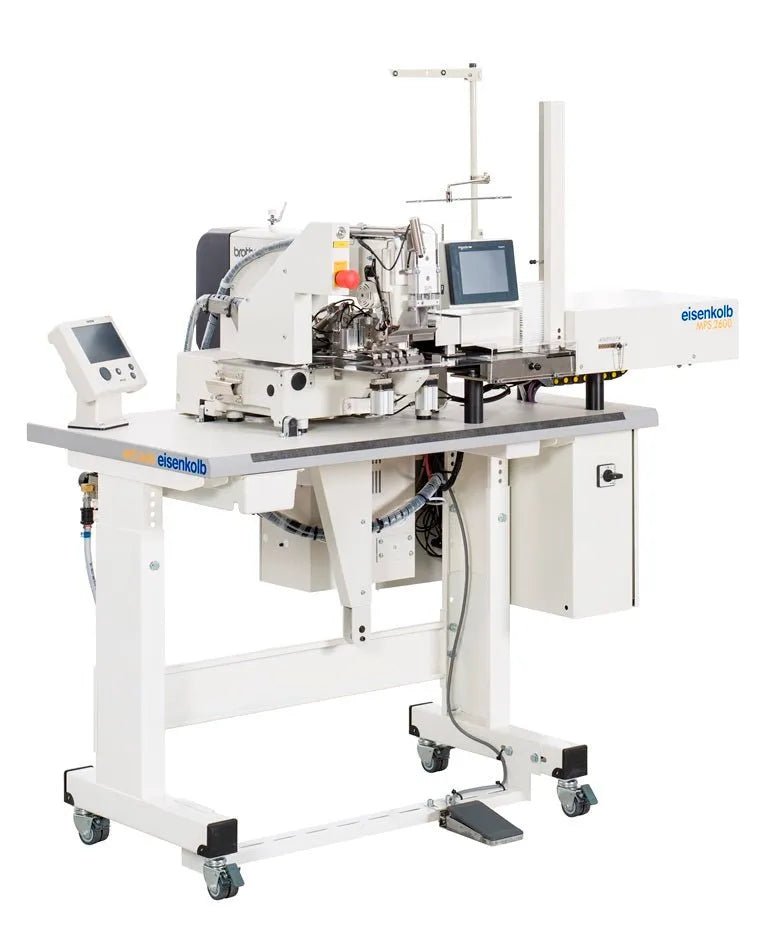

Eisenkolb MPS-2600: Automatic Single/Double Pleating and Microflex Hook Insertion Machine

The Eisenkolb MPS-2600 is an advanced automatic pleating and hook insertion machine designed for efficiency and precision in curtain production. Ideal for window covering manufacturers, this machine excels in creating high-quality single and double pleats with integrated hook insertion, enhancing the productivity of your manufacturing process.

Key Features:

1. Brother X-Y Feed Lockstitch Sewing Machine: Pre-programmed to sew curtain pleats up to 12.5 cm in height, ensuring consistent and high-quality pleating.

2. Computer-Operated Folding Station: Automates the folding of double pleats, which can be secured with L- or spot tacks as desired. This feature ensures precise and uniform pleating with minimal manual intervention.

3. Pleat Calculation Module: Simplifies the calculation and setting of desired pleat depths, making the process efficient and accurate.

4. Nexio Touch Screen: Facilitates easy selection of desired speed or thread tension, providing full control over the pleating process.

5. Automatic Microflex Hook Feed System: Includes hook height selection in 5 mm increments and a 100-hook container, streamlining the hook insertion process.

6. Alignment Laser: An accurate, low-power laser ensures even pleat distances, enhancing the quality and uniformity of the finished product.

7. Needle Cooling: Ensures optimal performance with difficult fabrics, maintaining high-quality pleating.

8. Pleat Specifications:

   • Pleat Depth: 20-50 mm (20-100 mm for single pleats)
   • Pleat Distance: 65-185 mm
   • Maximum Pleat Thickness: 16 mm

9. Optional Features:

   • Patented Pleat Calculation Program: Allows for the positioning of seams as desired, either inside or next to the pleat, providing additional customization options.

10. High Production Capacity: The MPS-2600 can produce up to 250 single or double pleats per hour*, significantly boosting productivity and efficiency.

Technical Specifications:

• Dimensions: 130 x 70 cm
• Electric: 220 V, 1 phase, 1000 W, 16 A
• Air: 5 bar, 2.7 L per cycle

The Eisenkolb MPS-2600 is a versatile and efficient pleating and hook insertion machine, designed to meet the rigorous demands of professional window covering manufacturers. Its advanced features, robust construction, and ergonomic design make it an invaluable asset in any production setup.
