Juki MS-1261/V0455 Feed-off-the-arm, Double Chainstitch Machine (2 Months Lead Time After 100% Advance Payment Received)
Regular price
Dhs. 20,650.00
inc. VAT
Couldn't load pickup availability
The machine is the leading double chainstitch machine for heavy-weight materials and achieves higher efficiency in operation and higher quality of finished products.

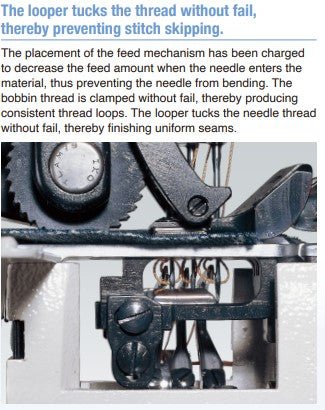

The placement of the feed mechanism has been charged to decrease the feed amount when the needle enters the material, thus preventing the needle from bending. The bobbin thread is clamped without fail, thereby producing consistent thread loops. The looper tucks the needle thread without fail, thereby finishing uniform seams.
| Model name | MS-1261M | MS-1261 | ||
|---|---|---|---|---|
| Application | For medium- to heavy-weight materials | For extra heavy-weight materials for jeans | ||
| No. of needle | 3 | |||
| Max. sewing speed | 3,600sti/min (normal 3,000sti/min)* | |||
| Needle bar stroke | 33.2mm | |||
| Needle (at the time of delivery) |
SCHMETZ UY128GAS (Nm120) Nm100~Nm140 ORGAN UY×128GAS-NY (#19) #16~#22 |
SCHMETZ UY128GAS (Nm130) Nm100~Nm140 ORGAN UY×128GAS-NY (#21) #16~#22 |
||
| Needle gauge | 5.6mm (7/32"), 6.4mm (1/4"), 7.2mm (9/32"), 8.0mm (5/16"), 9.6mm (3/8") | |||
| Stitch length | 1.4~4.2mm | |||
| Lift of the presser foot | 10mm | |||
| Thread take-up lever | Needle bar thread take-up lever | |||
| Circumference of tube at the needle entry | 190mm | |||
| Needle guard | Backward travelling needle guard | |||
| Stitch adjusting system | By push-button (with locking mechanism) | |||
| Lubrication | Semi-automatic lubrication | |||
