Seiko SLH-2B-FH-1 Long Arm Extra Heavy Duty Lockstitch Sewing Machine (Complete Set)
AED 48,700.00
Couldn't load pickup availability
- Safe Payment
- Trusted Store
- Fast UAE Delivery
BUY WITH CONFIDENCE
When you order from My Sewing Mall, you get more than a machine; you get peace of mind.
- One Year Warranty
- Free Delivery in Dubai, Sharjah & Ajman
- Local Repairs, Spare Parts & Servicing
From your first stitch to full production, we’re here to help you succeed!

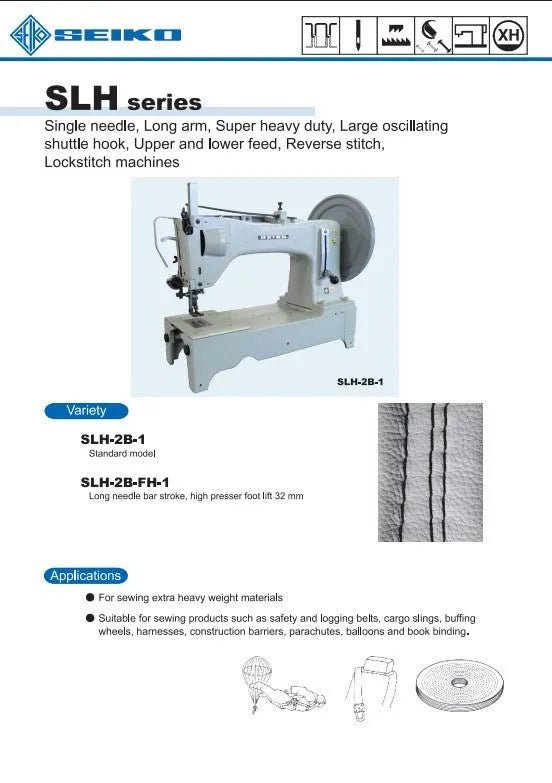

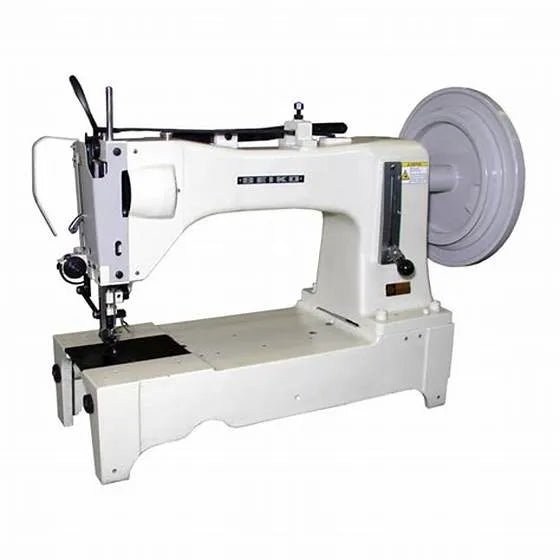

The Seiko SLH-2B-FH-1 is a robust, single-needle, long-arm lockstitch machine engineered for extra heavy-duty sewing tasks. Its synchronized walking foot and drop feed mechanism ensure consistent stitch quality on thick and multi-layered materials. Designed for durability and precision, this machine is ideal for industrial applications requiring high-strength seams.
Why Choose This Machine
- Extra Heavy-Duty Capability: Handles materials like safety belts, cargo slings, and parachutes with ease.
- Long Arm Design: Provides a working space of 413mm, accommodating large and bulky items.
- High Presser Foot Lift: Offers a clearance of up to 32mm, facilitating the sewing of thick materials.
- Large Oscillating Shuttle Hook: Reduces bobbin changes, enhancing productivity.
- Cam Take-Up Mechanism: Ensures consistent thread tension for uniform stitching.
- Optional Features: Available with automatic back tack (BT) and presser foot lift (FL) for increased efficiency.
Key Features & Benefits
- Stitch Length: Adjustable up to 15mm for versatile sewing requirements.
- Needle System: Compatible with Schmetz 1000 (#250) needles, suitable for thick threads (#0 to #00).
- Needle Bar Stroke: 56.7mm stroke accommodates heavy materials.
- Walking Foot Movement: Adjustable between 5–7mm for handling varying material thicknesses.
- Lubrication: Manual lubrication system ensures smooth operation.
- Reverse Stitching: Facilitated by a stitch adjusting lever or foot pedal for reinforced seams.

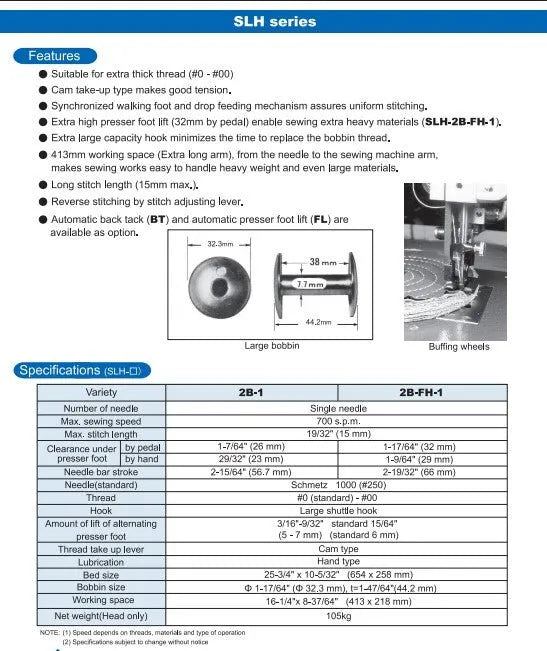

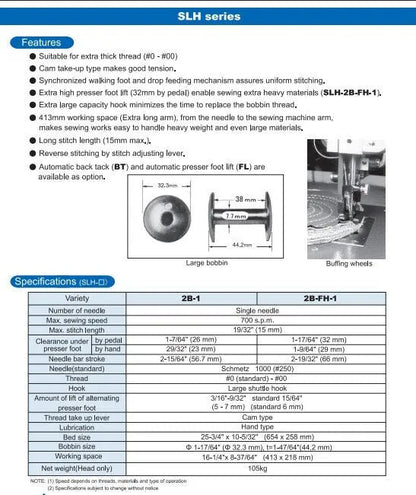

Technical Specifications
| Model | Seiko SLH-2B-FH-1 |
|---|---|
| Stitch Type | Lockstitch |
| Needle | Single (Schmetz 1000 #250) |
| Maximum Sewing Speed | 700 stitches per minute |
| Maximum Stitch Length | 15mm |
| Presser Foot Lift | By hand: 23mm; By pedal: 26mm |
| Needle Bar Stroke | 56.7mm |
| Hook | Large oscillating shuttle hook |
| Walking Foot Movement | 5–7mm (Standard: 6mm) |
| Lubrication | Manual |
| Bed Size | 654mm × 258mm |
| Working Space | 413mm × 218mm |
| Weight (Machine Head Only) | Approximately 105kg |
Ideal For
- Manufacturing of safety and logging belts
- Production of cargo slings and buffing wheels
- Construction of harnesses and construction barriers
- Fabrication of parachutes and balloons
- Bookbinding and other heavy-duty sewing applications

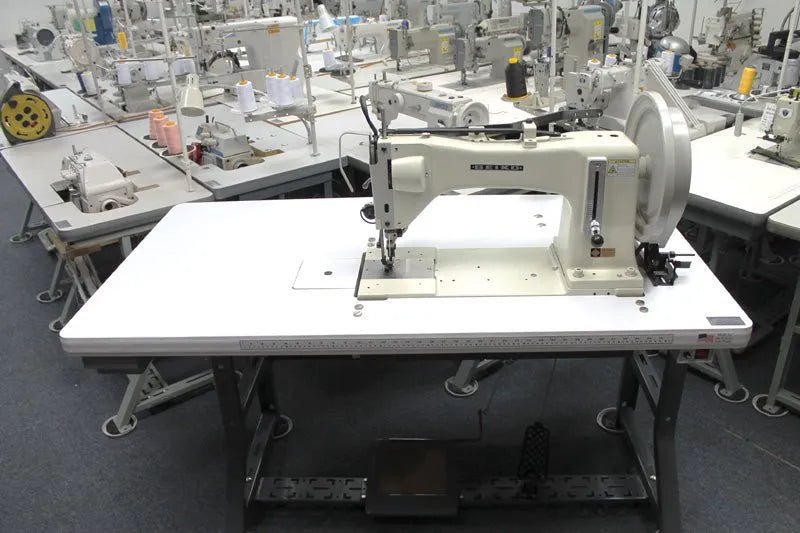

Included Accessories
- Servo motor
- Complete table and stand set
- Standard presser foot
- Oil container
- Instruction manual
Why Seiko
Seiko is renowned for its commitment to quality and innovation in the sewing industry. The SLH-2B-FH-1 model exemplifies Seiko's dedication to providing durable and efficient machines tailored for heavy-duty applications.
Enhance your sewing capabilities with the Seiko SLH-2B-FH-1. Contact us today to place your order or to learn more about how this machine can benefit your production line.
