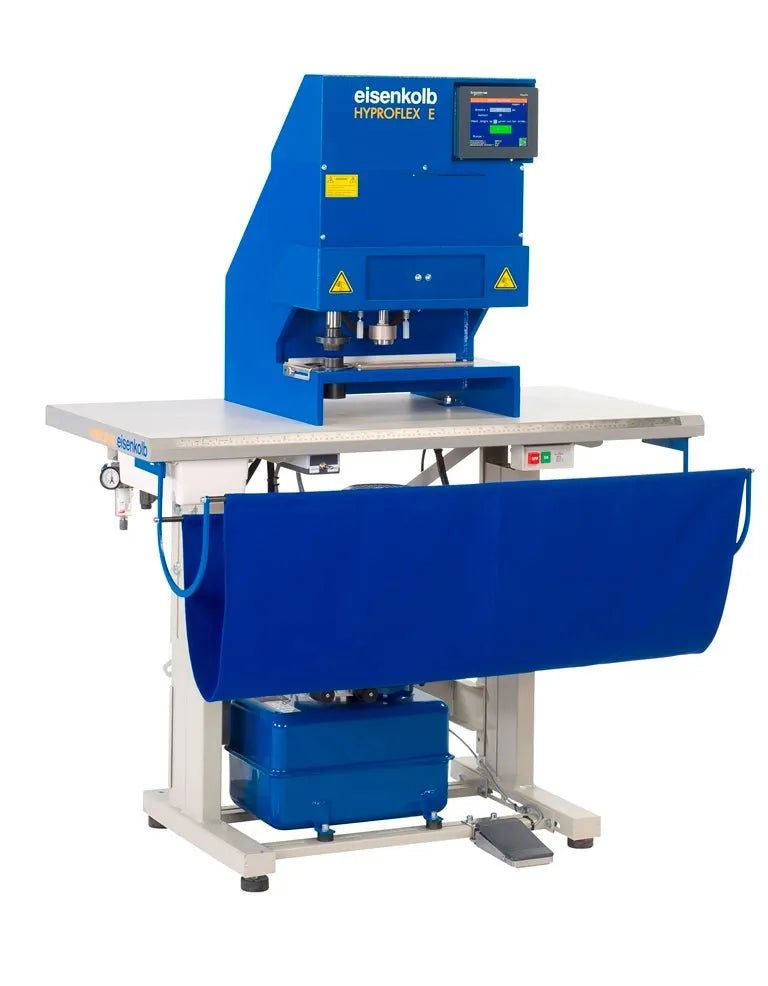

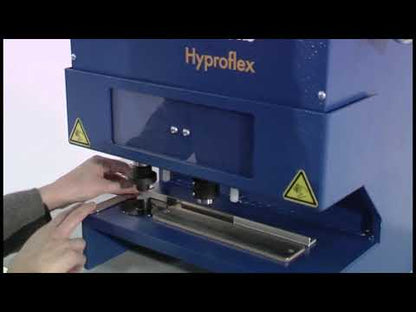

Eisenkolb Hyproflex: High-Precision Hydraulic Punching and Eyelet Pressing Machine

Please note that by submitting this form, you are requesting a callback from our sales team to discuss purchasing this machine. It does not constitute an immediate purchase of the machine. Please note: The 1 AED fee covers the consultation only

Revolutionize your curtain manufacturing process with the Eisenkolb Hyproflex, a cutting-edge hydraulic machine designed to simultaneously punch holes and set eyelets in a single operation. This innovative solution saves you time and labor, maximizing your production efficiency while maintaining exceptional quality.

Key Features and Benefits:

• Simultaneous Punching and Eyelet Pressing: Eliminate the need for multiple machines by combining two essential operations into one seamless process.
• Double Hydraulic Cylinders: Ensure precise and consistent results with the powerful double hydraulic cylinders that effortlessly punch holes and set eyelets.
• Adjustable Ring Distance: Customize the distance between eyelets for various curtain styles with the easy-to-use hand wheel adjustment.
• Hydraulic Foot Pedals: Securely hold the fabric in place for accurate positioning and consistent results with the convenient foot pedals.
• Two-Hand Safety Control: Prioritize operator safety with the two-hand control system that prevents accidental activation.
• Quick-Change Tool System: Easily switch between different eyelet sizes and styles for maximum versatility.

Technical Specifications:

• Model: Eisenkolb Hyproflex
• Operation Type: Hydraulic
• Punching & Pressing: Simultaneous
• Ring Distance Adjustment: Handwheel
• Foot Pedal Control: Yes
• Safety Control: Two-hand
• Tool Change System: Quick-change
• Standard Equipment: 40mm set
• Ring Distance: 80-230 mm
• Head Setting: 10-85 mm
• Optional: Ring calculation module with auto setting
• Production Capacity: 100-150 rings per hour (operator dependent)
• Dimensions: 110 x 75 cm
• Electrical Requirements: 220 V, 1 phase, 1100 W
• Air Requirements: 6 bar, 0.1 L per cycle

Additional Features:

• Ring Calculation Module (Optional): Automatically calculates and sets the optimal ring distance for increased efficiency and accuracy.
• User-Friendly Interface: The intuitive controls make operation simple and straightforward.
• Durable Construction: Built to withstand the demands of high-volume production environments.

Why Choose Eisenkolb?

Eisenkolb is a trusted name in the curtain manufacturing industry, known for its innovative and reliable equipment. The Hyproflex is a testament to Eisenkolb's commitment to helping businesses optimize their production processes.

Transform Your Curtain Production Today with the Eisenkolb Hyproflex!
