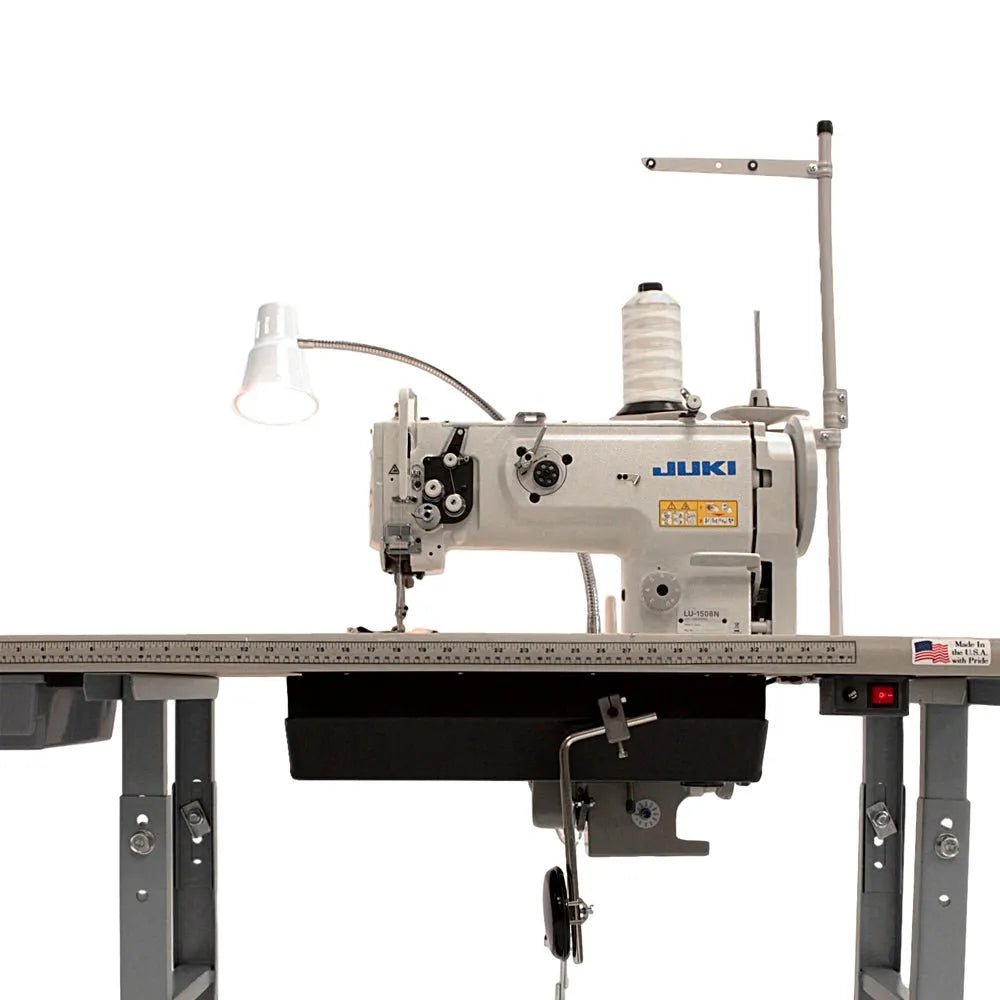

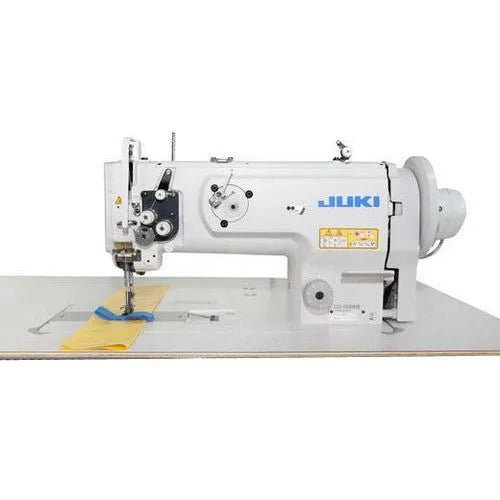

LU-1508NH 1-Needle, Unison Feed, Lockstitch Machine (2 Months Lead Time After 100% Advance Payment Received)

The maximum stitch length is 10mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needle bar stroke of 38mm and long 190R needle, the compound feed machine supports the sewing of extra heavy materials.

A new feed mechanism with a rectangular feeding motion prevents stitch gathering

The new mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without stitch gathering.

The lower orbit of the feed dog prevents the material from flopping and reduces operating noise and vibration.

The alternating vertical movement mechanism prevents irregular stitches

The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot even when the material thickness changes.

Even when a heavy-weight material is used, the presser foot lift does not decrease. This means that the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches.

The amount of the alternating vertical movement of the walking foot and presser foot can be adjusted up to the maximum of 6.5mm according to the height of multilayered portions of the material.

LU-1508NH(for extra heavy materials)

Lead time: 2 Months of production and transit time after 100% Advance payment received. (Payment terms are negotiable)
