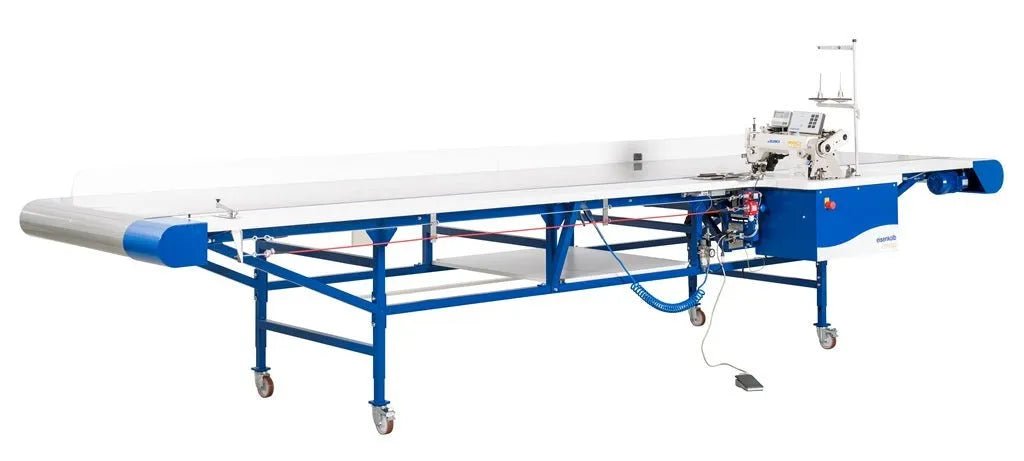

Eisenkolb CCP-2300: Lock Stitch Conveyor Curtain Sewing Machine

The Eisenkolb CCP-2300 is a high-performance lock stitch conveyor curtain sewing machine, specifically designed for window covering manufacturers. Combining precision, efficiency, and user-friendly features, this machine is ideal for producing high-quality curtains with perfect hems and stitches.

Key Features:

1. High-Speed Juki 1-Needle Lockstitch Machine: Equipped with adjustable top and bottom feed, this machine ensures precise and consistent stitching, catering to various fabric types and thicknesses.

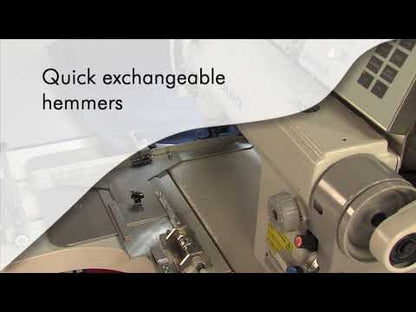

2. Multifunctional Air Injected Hemmers: The CCP-2300 includes two easily exchangeable air injected hemmers that produce perfect single and double hems up to a maximum width of 120 mm, providing versatility in hemming options.

3. Electrically Removable Sewing Unit: The sewing unit can be electrically removed, making threading, cleaning, and maintenance straightforward and hassle-free.

4. Start/Stop Drawstrings: Located over the full length of the frame, these drawstrings enhance the machine's efficiency and ergonomics, improving the operator's comfort and productivity.

5. Compact, Space-Saving Frame: The machine features a synchronized conveyor belt with a length of 550 cm, providing a compact and efficient workspace.

6. User-Friendly Operation: The CCP-2300 is designed for simplicity and ease of use, making it accessible for operators of all skill levels.

7. Optional Features:

   • Electro Hydraulic Height Adjustment: Allows for ergonomic work positions, reducing operator fatigue and increasing efficiency.
   • Extended Puller: Processes hems up to a width of 180 mm, offering greater flexibility in hem sizes.
   • Exchangeable Fabric Guidance System: Ensures precise and consistent fabric handling for various curtain designs.
   • Tape Feed System: Allows for the sewing of pleat tapes, enhancing the machine's versatility.

8. High Production Capacity: The CCP-2300 can produce up to 50 panels per hour, including bottom and side hems (average panel length of 250 cm)*, significantly boosting production efficiency.

Technical Specifications:

• Dimensions: 550 x 165 cm
• Electric: 220 V, 1 phase, 1350 W, 16 A
• Air: 6 bar, 3 L per cycle

The Eisenkolb CCP-2300 is a versatile and efficient lock stitch conveyor curtain sewing machine, designed to meet the demanding needs of professional window covering manufacturers. Its advanced features, robust construction, and ergonomic design make it an invaluable asset in any manufacturing setup.
