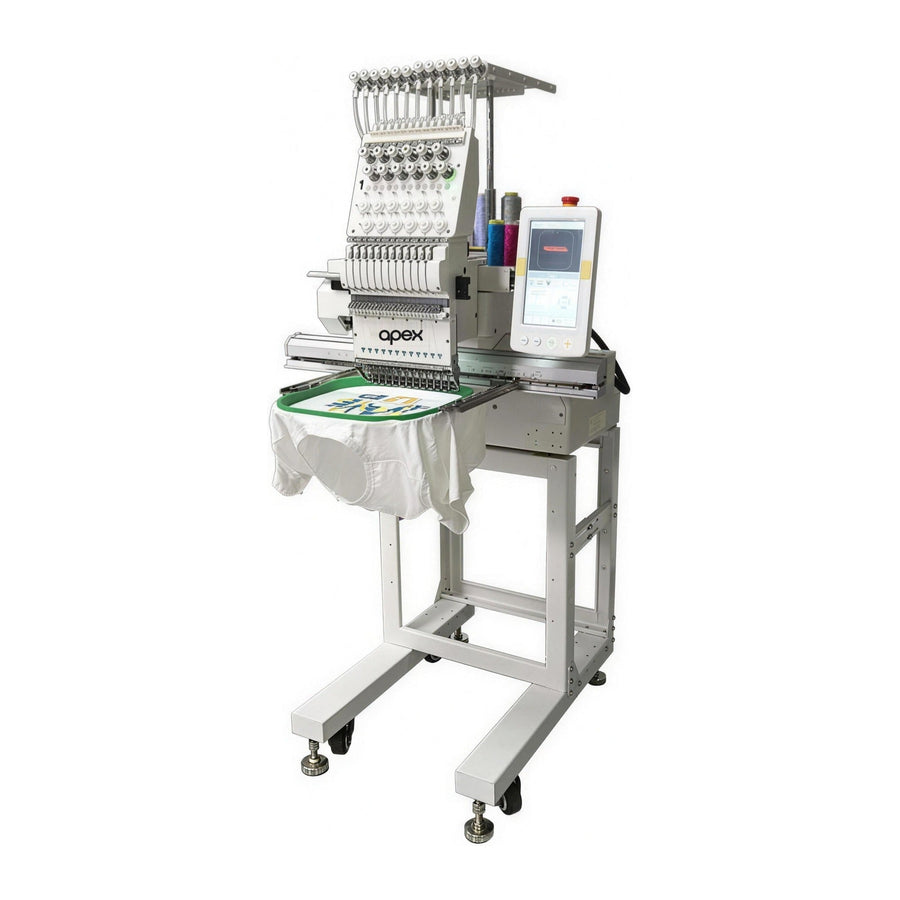

apex GX1201‑H Compact Single-Head Embroidery Machine

A compact embroidery machine with 12 or 15 needles, for caps, T-shirts, uniforms and bags.

The bigger 350x500 mm field costs only AED 500 more than the 220x300 mm field. 15 needles come only with the 350x500 mm field.

What it does

• Stitches logos and names on caps, T-shirts, polo shirts, uniforms and bags.
• Holds 12 or 15 thread colours (15 only with the 350x500 mm field) and changes colour by itself.
• Cuts the thread by itself and stops when a thread breaks.
• The feet come off, so it can stitch big items like golf bags and travel bags.
• A red light shows the needle point, so each design goes in the right place.

Choose your options

Embroidery area

• 220x300 mm: for chest logos, caps and small items.
• 350x500 mm: for bigger designs, like jacket backs and large bags. Only AED 500 more.

Needles

• 12 needles: 12 thread colours ready to use. With the 220x300 mm or the 350x500 mm field.
• 15 needles: 15 colours ready, for designs with many colours. Only with the 350x500 mm field, for AED 19,999.

Prices in AED, VAT included.

Embroidery area	12 needles	15 needles
220x300 mm	AED 18,999	Not made in this size
350x500 mm	AED 19,499	AED 19,999

Design software (included)

• Wilcom EmbroideryStudio 2025 Essentials. Make and edit your own designs. Turn a logo or picture into embroidery. 45 embroidery fonts. Exports to more than 30 machine file formats.

Table (optional)

• A height-adjustable table helps with big, heavy items. Ask us for the price on WhatsApp.

What is included

• Design software: Wilcom EmbroideryStudio 2025 Essentials
• Delivery anywhere in the UAE
• Installation and in-person training by our technicians
• 1-year warranty: parts from the maker, labour by our technicians
• Spare parts kept in the UAE
• Cap driver, cap station and 2 cap frames
• Garment hoops: 95, 145, 190, 240 and 295 mm square
• Aluminium frame
• Machine stand and tool box
• 5% VAT included, with a UAE VAT invoice

Specifications

Model	GX1201-H (12 needles), GX1501-H (15 needles, 350x500 mm only)
Heads	1
Needles	12 or 15 (15 only with the 350x500 mm field)
Embroidery area	220x300 mm or 350x500 mm
Speed	Up to 1,200 stitches per minute (1,000 in normal use)
Controller	Dahao A15 Pro, 10-inch colour touch screen, USB port
Automatic functions	Thread trimmer, colour change, thread-break detection
Caps	270° wide-angle cap system
Positioning	Red-light positioning, LED work light
Memory	200 million stitches
Design files	DST, DSB and more
Screen languages	17, including Arabic and English
Power	AC 110-220 V, 50-60 Hz
Weight	220x300 mm: 80 kg (120 kg packed). 350x500 mm: 100 kg (140 kg packed)
Crate size	220x300 mm: 600x650x885 mm. 350x500 mm: 740x780x885 mm

Price and terms

• All prices include 5% VAT.
• Made to order. Delivery in 45 to 60 days.
• Payment: 60% when you order, 40% before delivery.
• Tabby and Tamara work on all three models, at the full price, for orders under AED 20,000. With Tabby: 4 payments of AED 4,750 on the AED 18,999 model.
• Delivery included anywhere in the UAE: Dubai, Abu Dhabi, Sharjah and the other emirates.
• Sold, installed and serviced by MySewingMall in the UAE. MySewingMall is apex's exclusive distributor worldwide.

Questions and answers

How much is this embroidery machine in the UAE?

From AED 18,999, VAT included, for the 220x300 mm model with 12 needles. The 350x500 mm model is AED 19,499 with 12 needles, or AED 19,999 with 15 needles. 15 needles come only with the 350x500 mm field. All prices include VAT. Design software (Wilcom EmbroideryStudio 2025 Essentials), delivery, installation and training are included.

Single head or multi-head: which should I buy?

A single head suits samples, small orders and many different designs. Choose a multi-head when you stitch the same logo on many items, like uniforms or team shirts. See the 4-head and the 6-head.

12 or 15 needles: what is the difference?

Each needle holds one thread colour. With 15 needles you load more colours, so you stop less often on designs with many colours. 15 needles come only with the 350x500 mm field, for AED 19,999. That is AED 500 more than 12 needles. Choose when you order, because each machine is made to order.

Can it embroider caps?

Yes. The price includes the cap driver, a cap station and 2 cap frames. The 270° wide-angle cap system lets you stitch wide designs on the front and sides of the cap.

What software comes with it?

Wilcom EmbroideryStudio 2025 Essentials comes with the machine. Make and edit your own designs, turn a logo or picture into embroidery, and use 45 embroidery fonts. It exports to more than 30 machine file formats. The machine reads DST and DSB design files from a USB stick.

Do you install the machine and train my staff?

Yes. Our technicians install the machine at your place and train your operator in person. The 1-year warranty covers parts from the maker and labour by our technicians. We keep spare parts in the UAE.

How long is delivery, and how do I pay?

Each machine is made to order, so delivery takes 45 to 60 days. Pay 60% when you order and 40% before delivery. Or use Tabby or Tamara: they work on all three models at the full price, for orders under AED 20,000.

More apex machines

Need more output? See the 4-head, from AED 49,599, and the 6-head, from AED 68,299.
