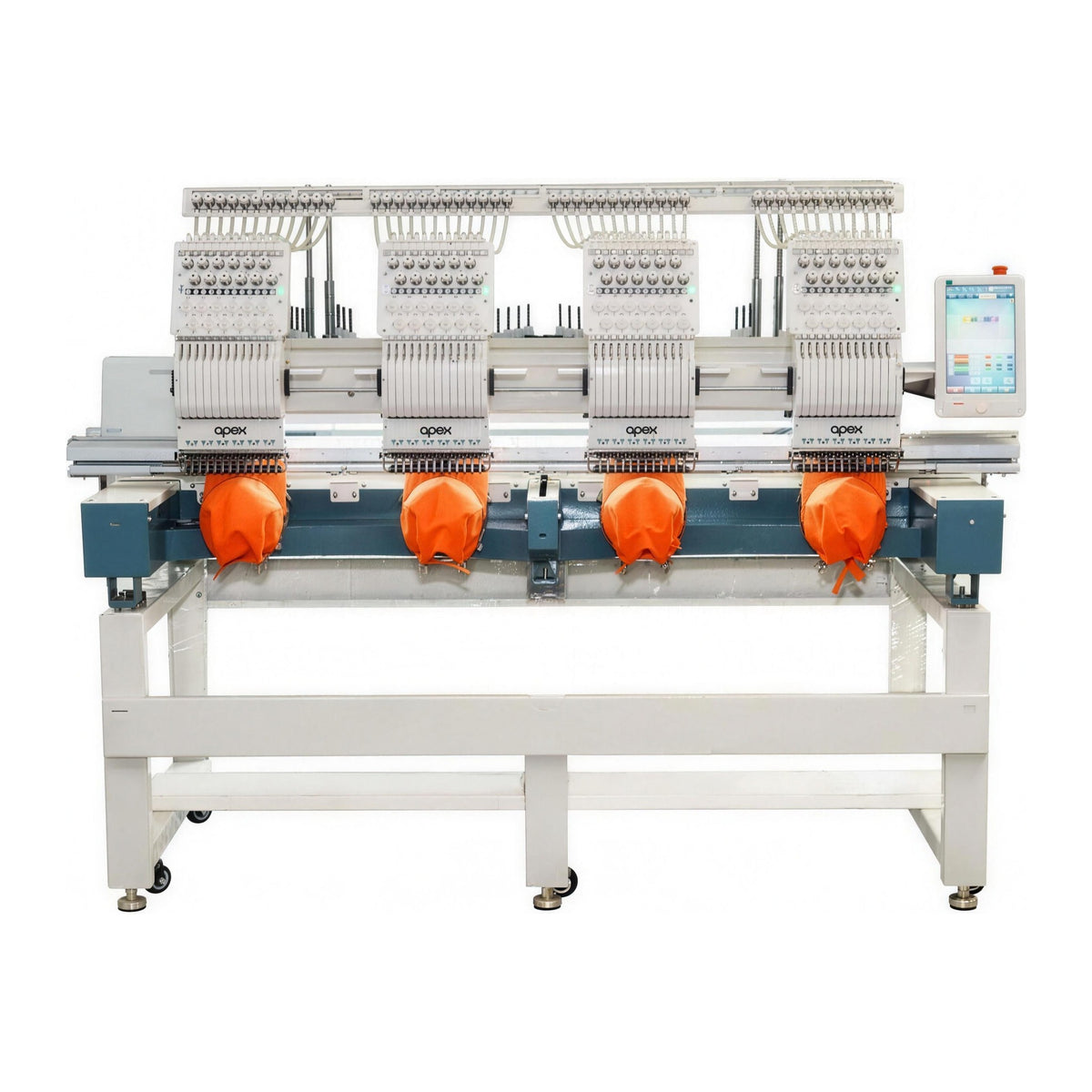

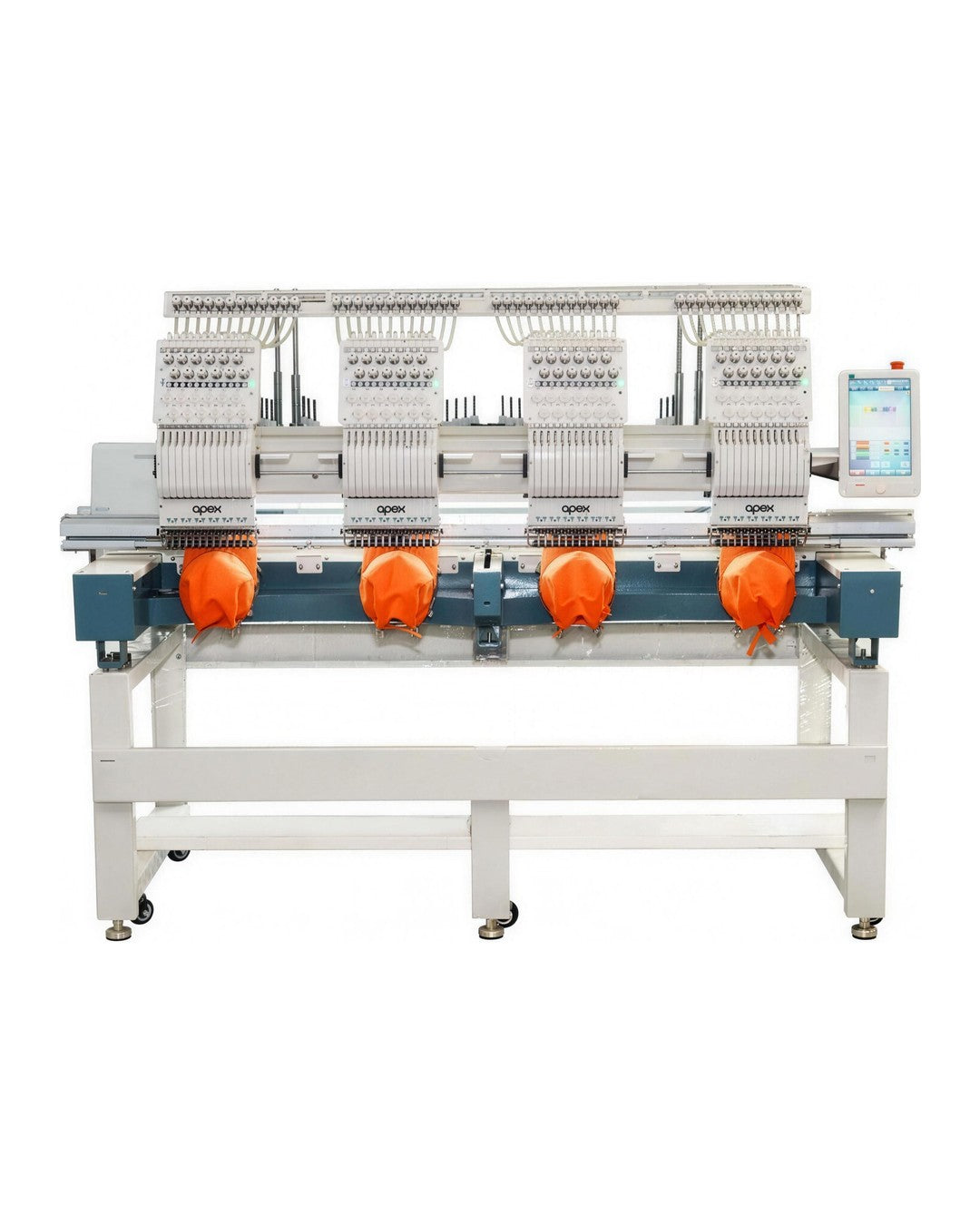

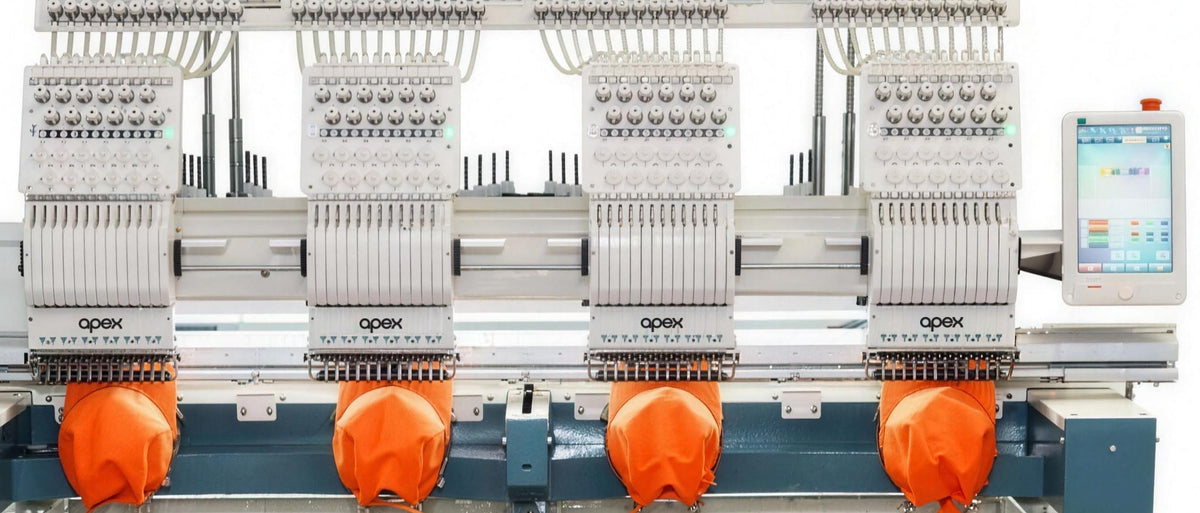

apex GX1204‑T 4-Head Embroidery Machine

A 4-head embroidery machine: the 4 heads stitch the same design on 4 items at once.

Each head has a 400x600 mm field. Add the cap kit to stitch caps as well.

What it does

• Stitches 4 shirts, uniforms or bags at the same time.
• With the cap kit, it stitches 4 caps at the same time.
• Every head stitches up to 400x600 mm. Most makers stop at 500 mm on the long side.
• Downward drive with 2 belts. Each belt carries less load, so it lasts longer.
• Same control system as the apex single head, so your operator learns one system.
• Cuts the thread, changes colour and finds broken threads by itself.

Choose your options

Needles

• 12 needles per head: 12 thread colours ready.
• 15 needles per head: 15 colours ready. Add AED 6,000, that is AED 1,500 per head.

Cap kit

• Without cap kit: for shirts, uniforms, bags and other flat items.
• With cap kit: cap frames for all 4 heads, so you can stitch caps too. Add AED 2,400.

Prices in AED, VAT included.

Needles	Without cap kit	With cap kit
12 needles	AED 49,599	AED 51,999
15 needles	AED 55,599	AED 57,999

What is included

• Design software: Wilcom EmbroideryStudio 2025 Essentials
• Delivery anywhere in the UAE
• Installation and in-person training by our technicians
• 1-year warranty: parts from the maker, labour by our technicians
• Spare parts kept in the UAE
• Aluminium frames with table, plastic garment frames, tool box and spare parts
• 5% VAT included, with a UAE VAT invoice

Optional

• Cap kit: AED 2,400

Specifications

Model	GX1204-T (12 needles), GX1504-T (15 needles)
Heads	4
Needles per head	12 or 15
Embroidery area per head	400x600 mm
Speed	Up to 1,200 stitches per minute
Controller	Dahao A15 Pro, 10-inch colour touch screen, USB port
Drive	Downward drive, dual belt
Automatic functions	Thread trimmer, colour change, thread-break detection
Caps	270° wide-angle cap system (with the cap kit)
Positioning	Red-light positioning, LED work light
Memory	200 million stitches
Design files	DST, DSB and more
Screen languages	17, including Arabic and English
Power	AC 110-220 V, 50-60 Hz
Weight	580 kg (620 kg packed)
Crate size	2000x1130x930 mm

Price and terms

• All prices include 5% VAT.
• Made to order. Delivery in 45 to 60 days.
• Payment: 60% when you order, 40% before delivery.
• Tabby and Tamara are for single-head machines only.
• Delivery included anywhere in the UAE: Dubai, Abu Dhabi, Sharjah and the other emirates.
• Sold, installed and serviced by MySewingMall in the UAE. MySewingMall is apex's exclusive distributor worldwide.

Questions and answers

How much is a 4-head embroidery machine in the UAE?

AED 49,599, VAT included, for 12 needles without the cap kit. That is about AED 12,400 per head. Big-brand 4-head machines cost AED 80,000 or more in the UAE. Design software (Wilcom EmbroideryStudio 2025 Essentials), delivery, installation and training are included.

Single head or 4-head: which should I buy?

The 4-head stitches the same design on 4 items at once. It suits uniform, school and team orders. A single head suits samples and many small, different orders.

Can it embroider caps?

Yes, with the cap kit: AED 2,400. Then all 4 heads stitch caps at the same time. The 270° wide-angle cap system lets you stitch wide designs on the front and sides of the cap.

How big is the embroidery area?

Up to 400x600 mm on each head. The long 600 mm side fits large back designs.

12 or 15 needles: what is the difference?

Each needle holds one thread colour. 15 needles cost AED 1,500 more per head, so AED 6,000 for all 4 heads. Choose when you order, because each machine is made to order.

What software is included, and is it easy to learn?

Wilcom EmbroideryStudio 2025 Essentials is included: make and edit your own designs, and turn a logo into embroidery. The machine uses the Dahao A15 Pro controller with a 10-inch touch screen in Arabic or English. We train your operator in person when we install the machine.

How long is delivery, and how do I pay?

Each machine is made to order, so delivery takes 45 to 60 days. Pay 60% when you order and 40% before delivery. Delivery, installation and training in the UAE are included.
