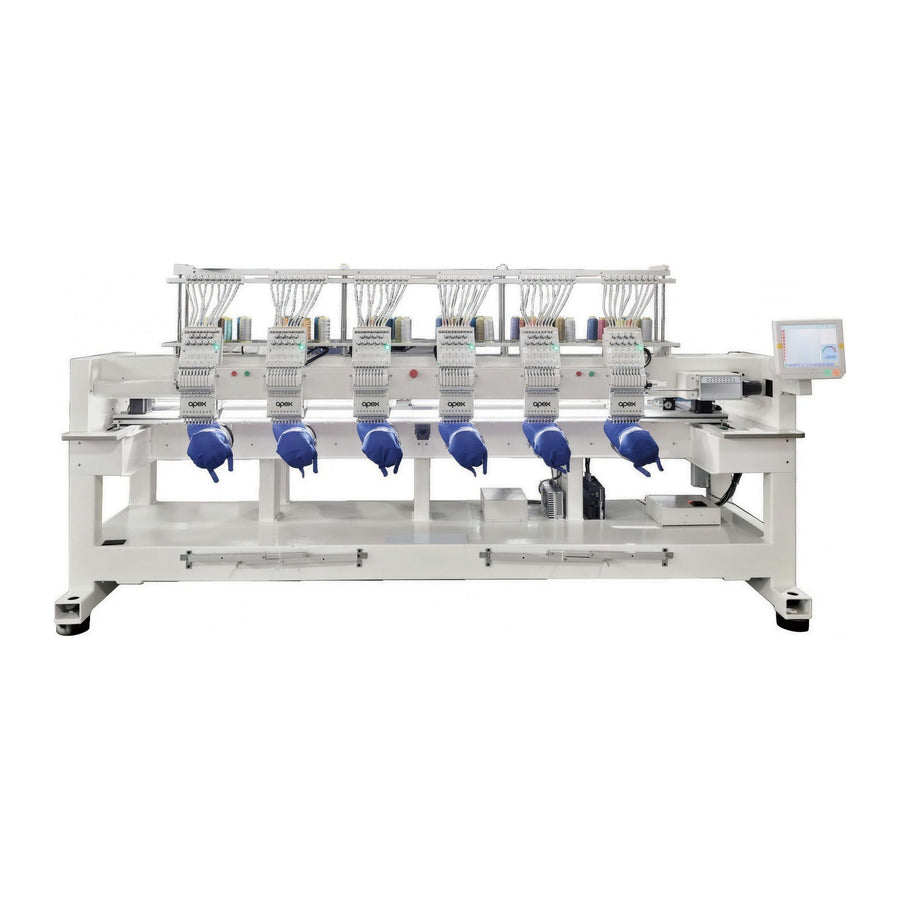

apex GX1206‑T 6-Head Embroidery Machine

A 6-head embroidery machine: the 6 heads stitch the same design on 6 items at once.

Made for big orders of uniforms and team shirts. Add the cap kit for caps.

What it does

• Stitches 6 shirts, uniforms or bags at the same time.
• With the cap kit, it stitches 6 caps at the same time.
• Every head stitches up to 400x450 mm.
• Topwisdom 515 controller with a 10-inch colour touch screen.
• Cuts the thread and changes colour by itself.

Choose your options

Needles

• 12 needles per head: 12 thread colours ready.
• 15 needles per head: 15 colours ready. Add AED 9,000, that is AED 1,500 per head.

Cap kit

• Without cap kit: for shirts, uniforms, bags and other flat items.
• With cap kit: cap frames for all 6 heads, so you can stitch caps too. Add AED 3,400.

Prices in AED, VAT included.

Needles	Without cap kit	With cap kit
12 needles	AED 68,299	AED 71,699
15 needles	AED 77,299	AED 80,699

What is included

• Design software: Wilcom EmbroideryStudio 2025 Essentials
• Delivery anywhere in the UAE
• Installation and in-person training by our technicians
• 1-year warranty: parts from the maker, labour by our technicians
• Spare parts kept in the UAE
• Aluminium frames with table, plastic garment frames, tool box and spare parts
• 5% VAT included, with a UAE VAT invoice

Optional

• Cap kit: AED 3,400

Specifications

Model	GX1206-T (12 needles), GX1506-T (15 needles)
Heads	6
Needles per head	12 or 15
Embroidery area per head	400x450 mm
Speed	Up to 1,200 stitches per minute
Controller	Topwisdom 515, 10-inch colour touch screen
Automatic functions	Thread trimmer, colour change
Caps	270° wide-angle cap system (with the cap kit)
Memory	200 million stitches
Design files	DST, DSB and more
Power	AC 110-220 V, 50-60 Hz
Weight	1,000 kg (1,200 kg packed)
Crate size	3485x1220x1440 mm

Price and terms

• All prices include 5% VAT.
• Made to order. Delivery in 45 to 60 days.
• Payment: 60% when you order, 40% before delivery.
• Tabby and Tamara are for single-head machines only.
• Delivery included anywhere in the UAE: Dubai, Abu Dhabi, Sharjah and the other emirates.
• Sold, installed and serviced by MySewingMall in the UAE. MySewingMall is apex's exclusive distributor worldwide.

Questions and answers

How much is a 6-head embroidery machine in the UAE?

AED 68,299, VAT included, for 12 needles without the cap kit. That is about AED 11,383 per head. Design software (Wilcom EmbroideryStudio 2025 Essentials), delivery, installation and training are included.

4-head or 6-head: which should I buy?

The 6-head stitches 6 items at once, 2 more than the 4-head. The 2 extra heads cost AED 18,700, less than one single-head machine. The 4-head has a longer field on each head (400x600 mm, against 400x450 mm) and needs less floor space.

Can it embroider caps?

Yes, with the cap kit: AED 3,400. Then all 6 heads stitch caps at the same time, on a 270° wide-angle cap system.

How much space and power do I need?

The machine weighs 1,000 kg. The crate is 3485x1220x1440 mm and weighs 1,200 kg. The machine runs on AC 110-220 V, 50-60 Hz. Plan a clear path to the room and a strong, level floor.

12 or 15 needles: what is the difference?

Each needle holds one thread colour. 15 needles cost AED 1,500 more per head, so AED 9,000 for all 6 heads. Choose when you order, because each machine is made to order.

Which controller does it use, and is it easy to learn?

It uses the Topwisdom 515 controller with a 10-inch colour touch screen. Wilcom EmbroideryStudio 2025 Essentials design software is included. We train your operator in person when we install the machine.

How long is delivery, and how do I pay?

Each machine is made to order, so delivery takes 45 to 60 days. Pay 60% when you order and 40% before delivery. Delivery, installation and training in the UAE are included.
