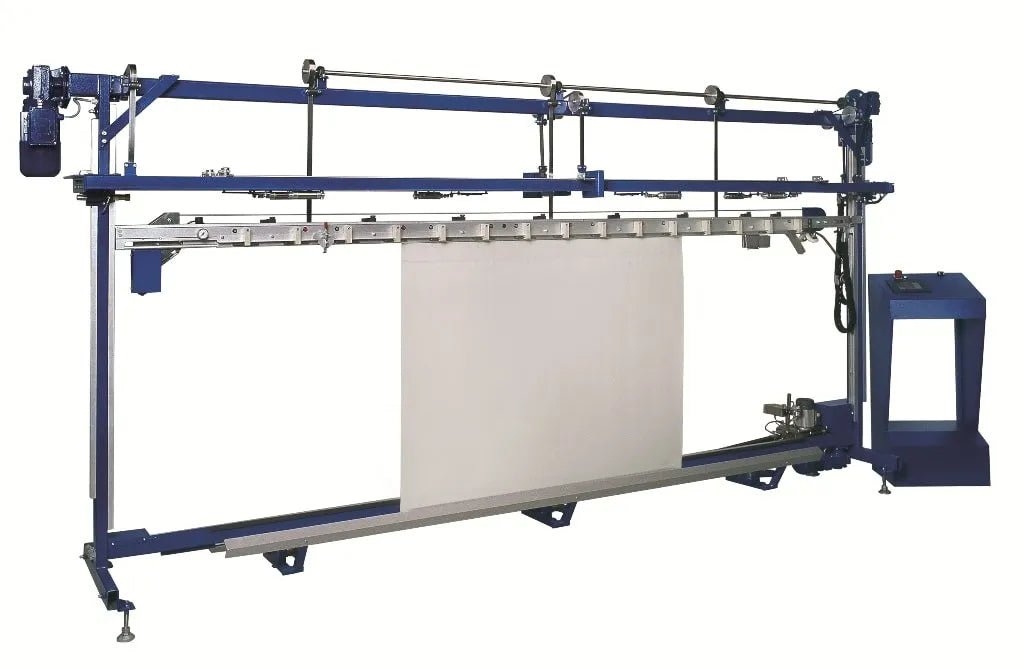

Eisenkolb AGA-2300: Automatic Vertical Curtain Height Cutting Machine

The Eisenkolb AGA-2300 is an advanced automatic vertical curtain height cutting machine designed for precision and efficiency in curtain production. Ideal for window covering manufacturers, this machine offers customizable features and robust performance to meet diverse production needs.

Key Features:

1. Universal Lifting Beam: Standard equipped with a universal lifting beam that attaches the curtain with spring clamps, via the lower hem or the curtain’s lead cord, ensuring secure and precise handling during cutting.

2. User-Friendly Operation: Operated via a free-standing console with a multilingual LCD touch screen, the AGA-2300 offers simple and intuitive controls for ease of use.

3. Adjustable Cutting Speed: Features adjustable cutting speed and an extra tension function to achieve optimal cutting results, accommodating various fabric types and thicknesses.

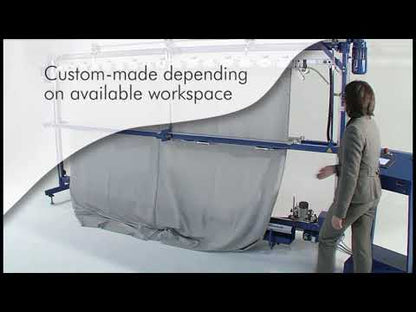

4. Custom-Built Options: The machine is available in two versions to suit different workspace requirements:

   • Model 2300DP: Suitable for workspaces with sufficient height, offering a maximum width of 1155 cm and a maximum height of 615 cm (545 cm net cutting height).
   • Model 2300DPX: Designed for workspaces with limited ceiling height, equipped with a second lifting beam for an additional lifting cycle, offering a maximum width of 891 cm and a maximum height of 615 cm (1040 cm net cutting height).

5. Optional Features:

   • Pneumatic Clamp Lifting Beam: Enhances the ease of handling and positioning of curtains.
   • Lifting Beam with Extended Pneumatic Clamps: Ideal for lined curtains, ensuring secure and accurate alignment.
   • Fully Automatic UV-Marking: For precise marking of curtains and blinds, streamlining the production process.
   • Double Lower Hem Rod: Allows for simultaneous cutting of curtain and lining, improving efficiency.
   • Barcode Interface: Facilitates the input of cutting height, enhancing data management and integration.

6. High Production Capacity: The AGA-2300 can produce up to 90 panels per hour*, significantly boosting productivity and efficiency.

Technical Specifications:

• Dimensions: 715 cm (smallest width) x 40 cm (smallest depth) x height made to order
• Electric: 220 V, 1 phase, 1350 W, 16 A
• Air: 5 bar, 3 L per cycle

The Eisenkolb AGA-2300 is a versatile and efficient curtain height cutting machine, tailored to meet the rigorous demands of professional window covering manufacturers. Its advanced features, robust construction, and ergonomic design make it an invaluable asset in any production setup.
