The Jack K5-D-01GBX356 is a high-speed, 3-needle, 5-thread cylinder bed interlock sewing machine designed for both light and heavy-duty applications. Its advanced features and robust construction ensure consistent stitch quality and enhanced productivity in garment manufacturing.
Why Choose This Machine

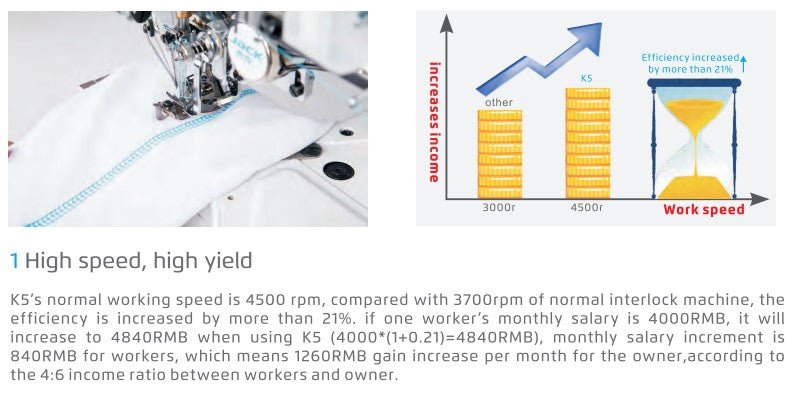

- High-Speed Operation: Achieves up to 5,500 stitches per minute, increasing production efficiency.
- Direct Drive Motor: Integrated energy-saving motor reduces power consumption and ensures quiet operation.

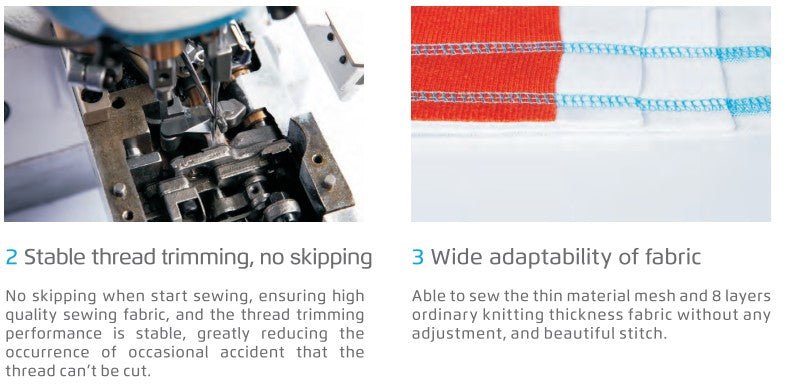

- Silent Thread Trimmer and Footlifter: Electronically controlled by a stepper motor for precise and silent operation.
- Wide Fabric Adaptability: Capable of sewing thin fabrics, knits, and up to 8 layers of fabric thickness without adjustment.
- Vocal Guide System: Provides real-time operational guidance and error notifications, simplifying machine operation.
Key Features & Benefits
- Needle System: Compatible with UY128GAS needles, sizes #11–14.
- Stitch Length: Adjustable from 1.5 to 4.5 mm for versatile sewing needs.
- Presser Foot Lift: Maximum lift of 7 mm facilitates easy handling of materials.
- Differential Feed Ratio: Adjustable from 0.8 to 1.3 for optimal fabric feeding.
- Lubrication System: Minute-quantity lubrication minimizes oil stains on fabrics and reduces maintenance needs.
- Compact Design: Machine dimensions of 670mm x 445mm x 595mm save workspace.

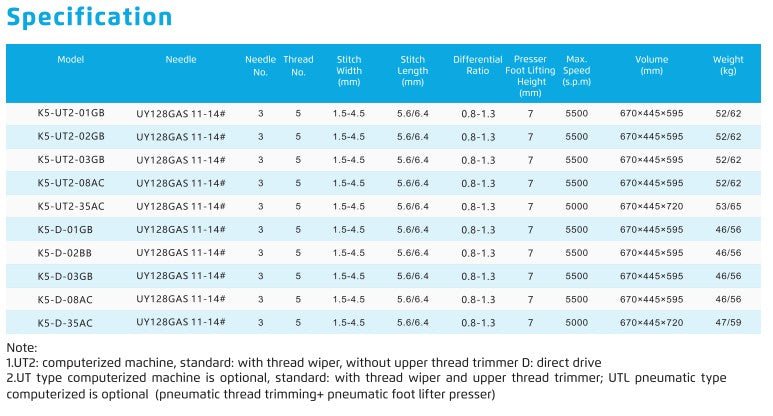

Technical Specifications
| Model | Jack K5-D-01GBX356 |
|---|---|
| Stitch Type | Top and Bottom Coverstitch |
| Needle | UY128GAS #11–14 |
| Number of Needles | 3 |
| Number of Threads | 5 |
| Maximum Sewing Speed | 5,500 stitches per minute |
| Stitch Length | 1.5 – 4.5 mm |
| Presser Foot Lift | 7 mm |
| Differential Ratio | 0.8 – 1.3 |
| Lubrication | Minute-quantity |
| Machine Dimensions | 670mm × 445mm × 595mm |
| Weight | Approximately 52kg (machine head) |
Ideal For
- Apparel manufacturing
- Uniform production
- Denim and heavy fabric sewing
- General textile applications requiring durable seams
Included Accessories
- Complete table and stand set
- Standard presser foot
- Oil container
- Instruction manual
Why Jack
Jack is renowned for its commitment to innovation and quality in the sewing industry. The K5-D-01GBX356 model exemplifies Jack's dedication to providing durable and efficient machines tailored for modern manufacturing needs.
Production & Delivery Information
Our machines sell fast, and sometimes supply can't keep up with demand. For customers willing to wait, we’re happy to offer a special discount for customers who can wait. Think of it as our way of saying “thank you” for your trust and patience while we ensure you get the highest quality machine at the best possible value.
Contact us today to secure your discount!
Enhance your production capabilities with the Jack K5-D-01GBX356. Contact us today to place your order or to learn more about how this machine can benefit your operations.
