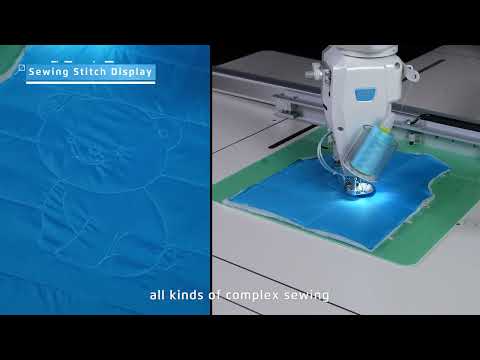

The Jack M9-SS-F13-X is an advanced industrial pattern sewing machine designed for high-precision quilting and decorative stitching. Its 360° rotating head and expansive 1400 x 950 mm sewing area make it ideal for intricate patterns on large fabrics. Engineered with cutting-edge technology, the M9 ensures consistent stitch quality, reduced thread breakage, and enhanced production efficiency.
Why Choose This Machine
- 360° Rotating Head: Allows omnidirectional sewing, ensuring perfect stitches even on curves and corners.
- Spirit Spider Thread Control System: Reduces thread breakage by 80%, minimizing downtime.
- Zero Thread Channels Technology: Nano-coated components decrease friction by 70%, extending thread life.
- Advanced Synchronization Algorithm: Performs 208 alignment calculations per stitch, enhancing stitch accuracy by 20%.
- Lightweight Aviation Aluminum Frame: Maintains torsion deviation under 0.04mm for precise sewing.
- High-Speed Performance: Operates at up to 3,600 stitches per minute, boosting productivity.
Key Features & Benefits
- Sewing Area: 1400 x 950 mm accommodates large panels and complex designs.
- Stitch Length: Adjustable from 0.05 to 20 mm for versatile applications.
- Presser Foot Lift: 15 mm lift facilitates sewing of thick materials.
- Touch Control Panel: 7-inch interface allows easy programming and operation.
- Thread Break Sensor: Detects thread issues promptly to prevent defects.
- RFID Reader: Enables quick recognition of sewing programs via templates.
- Dry Sewing Head: Eliminates oil leakage, keeping fabrics clean.
Technical Specifications
| Model | Jack M9-SS-F13-X |
|---|---|
| Purpose | Quilting and pattern sewing |
| Needle Type | DPx5, DPx17 |
| Number of Needles | 1 |
| Number of Threads | 2 |
| Sewing Area | 1400 x 950 mm |
| Stitch Length | 0.05 – 20 mm |
| Presser Foot Lift | 15 mm |
| Maximum Sewing Speed | 3,600 stitches per minute |
| Control Panel | 7-inch touch screen |
| Dimensions | 2200 x 1220 x 1650 mm |
| Weight | 610 kg (net) / 690 kg (gross) |
Ideal For
- Quilting and decorative pattern sewing
- Automotive interiors and upholstery
- Apparel and fashion manufacturing
- Bag and footwear production
- Industrial and high-volume sewing
Included Accessories
- Integrated direct-drive servo motor
- Complete table and stand set
- Standard presser foot
- Oil container
- Instruction manual
Why Jack
Jack is renowned for its commitment to innovation, quality, and reliability in the sewing industry. The M9-SS-F13-X model exemplifies Jack's dedication to providing machines that meet the evolving needs of garment professionals worldwide.
